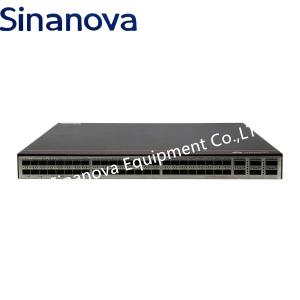

CE6820-48S6CQ-F High-Performance VXLAN EVPN Switch
Product Overview
Huawei CE6820-48S6CQ-F is a high-performance, high-density 10GE data center switch designed to meet the requirements of cloud computing, high-performance computing, and data center virtualized environments. With 48 × 10GE SFP+ downlink ports and 6 × 100GE QSFP28 uplink ports, this switch delivers ultra-fast connectivity and supports advanced features such as VXLAN, EVPN, and iStack stacking. It is ideal for both large-scale Layer 2 and Layer 3 networking scenarios with enhanced reliability and programmability.
Product Features
48 × 10GE SFP+ ports for high-density server access
6 × 100GE QSFP28 uplink ports for high-speed aggregation
VXLAN and EVPN support for scalable and flexible Layer 2/3 virtualization
iStack stacking for simplified network management and enhanced resilience
Advanced buffer management to handle burst traffic effectively
Compact 1U design with front-to-back airflow
Supports dual hot-swappable power supplies and redundant fans for high availability
Data center-grade QoS, security, and multicast support
Product Specifications
| Specification | Details |
| Model | CE6820-48S6CQ-F |
| Downlink Ports | 48 × 10GE SFP+ |
| Uplink Ports | 6 × 100GE QSFP28 |
| Switching Capacity | 2.56 Tbps |
| Forwarding Rate | 1,428 Mpps |
| Stacking | Supports iStack |
| Virtualization | VXLAN, EVPN |
| Dimensions (W × D × H) | Approx. 442 × 600 × 43.6 mm (1U) |
| Airflow Direction | Front-to-back |
| Power Supply | Dual hot-swappable AC or DC power modules |
| Typical Use Case | High-performance data center access/aggregation |
Similar Models Comparison Table
| Model | Downlink Ports | Uplink Ports | Forwarding Rate | Switching Capacity |
| CE6820-48S6CQ-F | 48 × 10GE SFP+ | 6 × 100GE QSFP28 | 1,428 Mpps | 2.56 Tbps |
| CE6855-48S6Q-HI | 48 × 10GE SFP+ | 6 × 40GE QSFP+ | 1,428 Mpps | 1.92 Tbps |
| CE6865E-48S8CQ-B | 48 × 10GE SFP+ | 8 × 100GE QSFP28 | 1,428 Mpps | 2.56 Tbps |
| CE6881-48S6CQ-B | 48 × 10GE SFP+ | 6 × 100GE QSFP28 | 1,428 Mpps | 2.56 Tbps |
| CE6857F-48S6CQ-B | 48 × 10GE SFP+ | 6 × 100GE QSFP28 | 1,428 Mpps | 2.56 Tbps |
Latest Models in the Same Series
| Model | Highlights | Port Configuration |
| CE6866-48S8CQ-PB1 | High programmability and intelligent switching | 48 × 10GE SFP+ + 8 × 100GE QSFP28 |
| CE6865E-48S8CQ-B | Enterprise-grade with 100GE performance | 48 × 10GE SFP+ + 8 × 100GE QSFP28 |
| CE6881-48S6CQ-B | Advanced switching with cloud-oriented design | 48 × 10GE SFP+ + 6 × 100GE QSFP28 |
